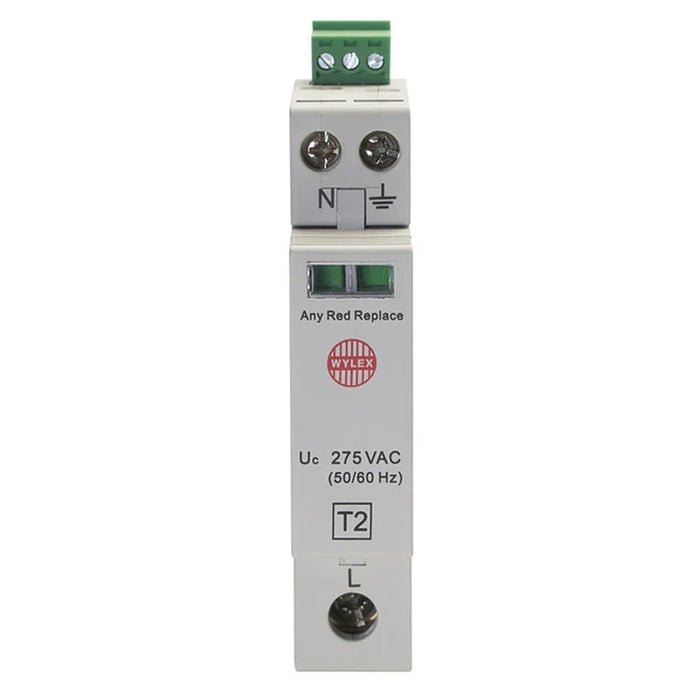

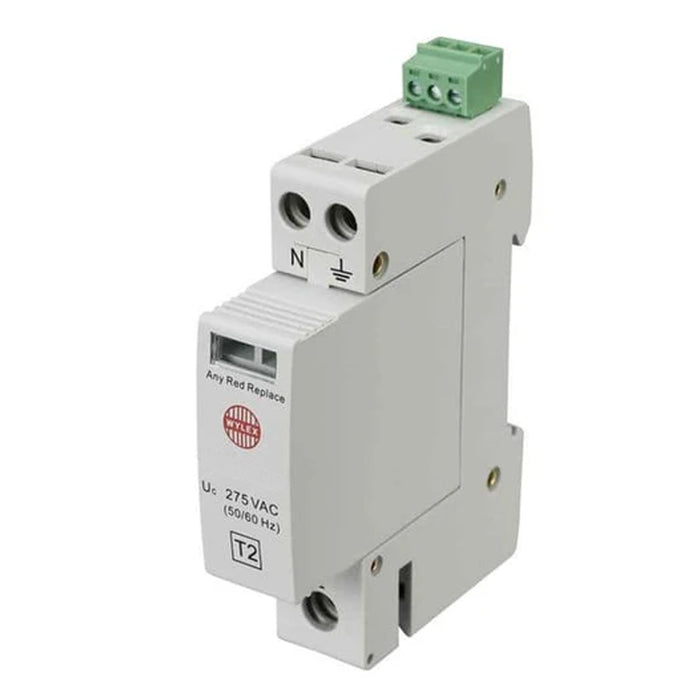

Wylex NMT2SPD3W/1 Type 2 Surge Protection Device Single Pole SPD

The Wylex NMT2SPD3W-1 Surge Protection Device has a 20 kA (8/20) nominal discharge surge current, 25 kA short-circuit breaking capacity, 275V maximum continuous voltage AC, 40 kA (8/20) maximum discharge surge current, and a 1.3 kV voltage protection level. It fits on a 35 mm DIN rail and has a construction size of 1 modular spacing. It has a maximum conductor cross section of 25 mm² for both solid and stranded wires, a remote signalling contact, and conforms to CE, WEEE, and UKCA standards. Its degree of protection is IP20 and it operates at 50 Hz.

• Nominal discharge surge current (8/20): 20 kA
• Short-circuit breaking capacity (Isccr): 25 kA
• Max. continuous voltage AC: 275 V
• Max. discharge surge current (8/20): 40 kA
• Mounting method: DIN rail (top hat rail) 35 mm
• Voltage protection level: 1.3 kV
• Max. conductor cross section (solid, stranded): 25 mm²
• Voltage protection level (L-N): 1.3 kV
• Voltage protection level (N-PE): 1.3 kV
• With remote signalling contact: Yes
• Integrated backup fuse: No
• Category type 2: Yes
• Degree of protection (IP): IP20
• Height: 85 mm
• Width: 18 mm
• Depth: 70 mm
