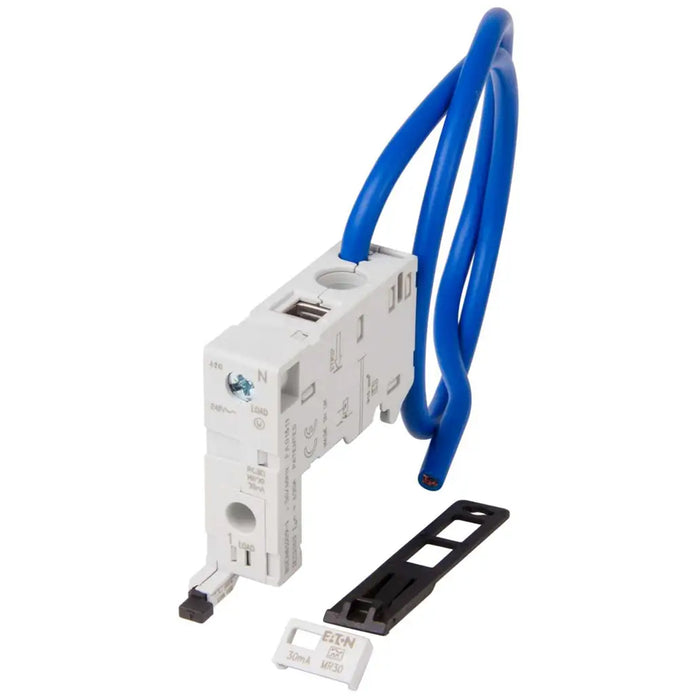

Eaton MEM Classic MR30 Memshield 2 Field Fit RCCB Pod 30mA Type A 230V RCD RCBO

This handy RC Unit (residual current unit) has been designed for installing on to any standard 1P or 1P+N Eaton MCB with a 10kA, 15kA & 6kA rating to create an RCBO. The MR30 RC POD unit is ideal for standard applications with a 230-240 VAC voltage rating and 30 mA breaking capacity and is suitable for field assembly. Fully compliant with Standard 61009, this capable MR30 POD is utilised in numerous industrial and commercial applications due to its versatility and ease of assembly.

RC POD Adaptor Features:

• Breaking Capacity - 30 mA
• Tripping class - A
• Voltage Rating - 230/240 VAC
• Helps Convert Memshield 2 MCBs to RCBOs
• Operating temperature -25 to + 55°C
• Maximum AC operating voltage 240/ 415 V
• Minimum AC operating voltage 100 VAC
• Impulse withstand voltage 5kV
• Dielectric Rigidity 2.5 kV
• Protection rating (inside/outside) IP20/IP40
• Terminal capacity 25 mm2
• Maximum terminal torque 2.0 Nm
• Pole dimensions (H x D x W) 120 x 67 x 18 mm
• Isolator application
• Nominal frequency 50/60 Hz
• Standards IEC 61009
