Antique Brass Screwless Custom Grid Plate Switch Components GCAB Full Range

Please note that these grid components are NOT compatible with BG or any other grid range.

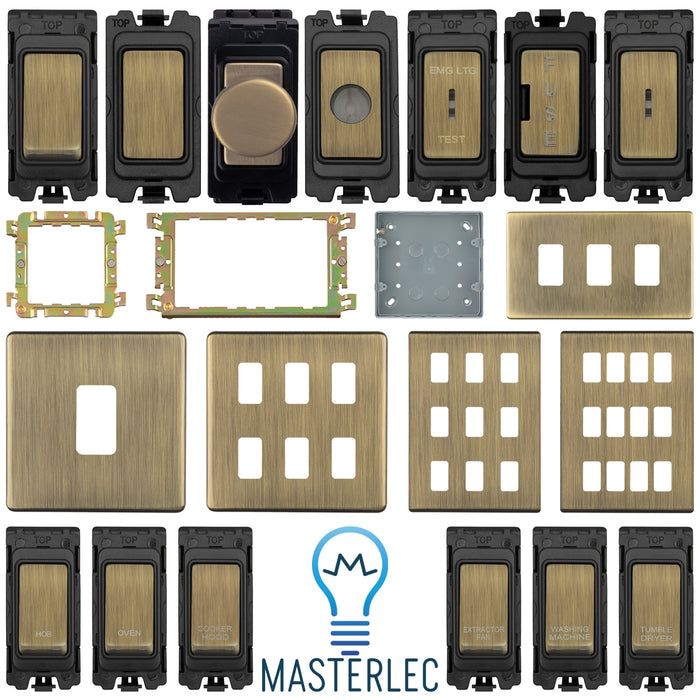

Grid Modular System

Designed for use in domestic, commercial and industrial applications, and allows you to build your own module configurations with a variety of combinations and finishes.

Product Assembly

• Easy to install with simple and secure ‘locate and clip’ fitting to frame.
• Captive backed out terminal screws for fast installation.
• Interchangeable rockers provide flexibility.
• Grid switches are often used in kitchens, utility rooms and dining rooms so that you have control over the various appliances all in one bespoke grid switch.
• They can also be used when you require a custom-made switch with 2 intermediates or a single switch alongside a dimmer.

To make up a complete grid switch you will require the following items:

• Back box (surface mounded or flush mounted)
• Front plate/ cover plate & Grid yoke/ Grid Frames
• Switches (labelled switches to match your appliances or plain switches)

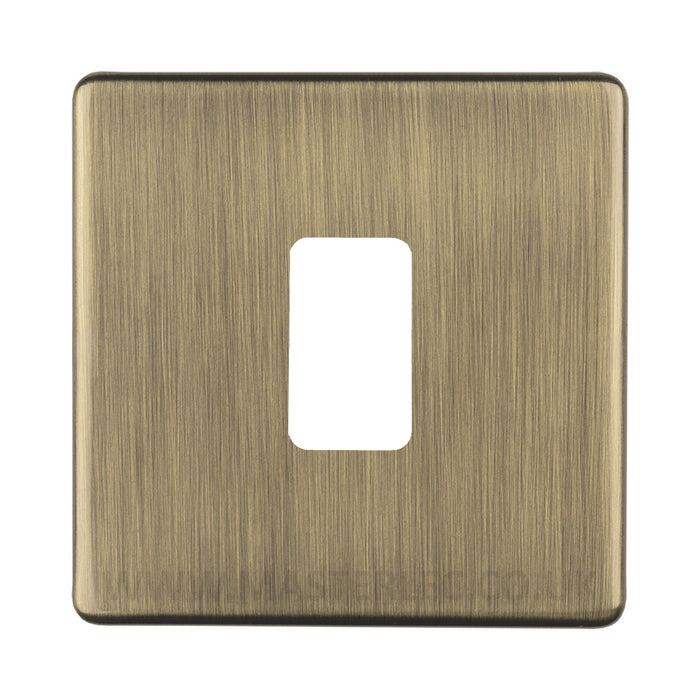

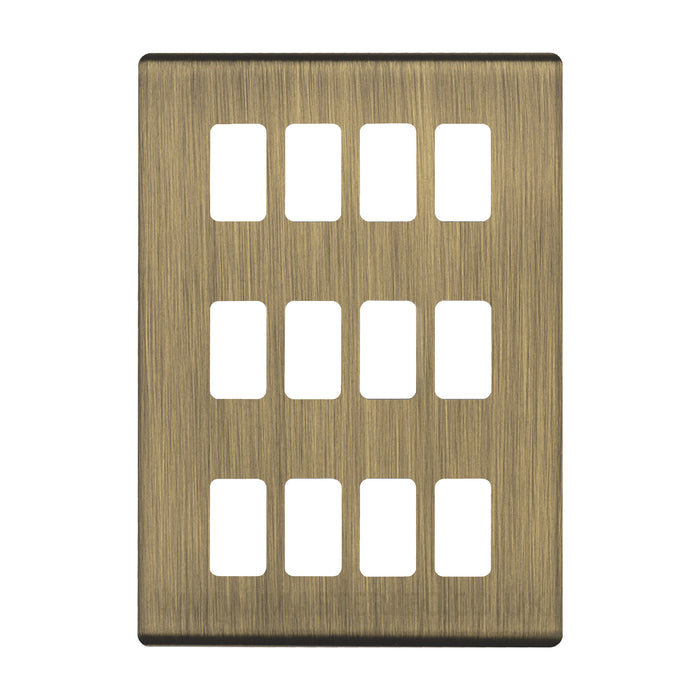

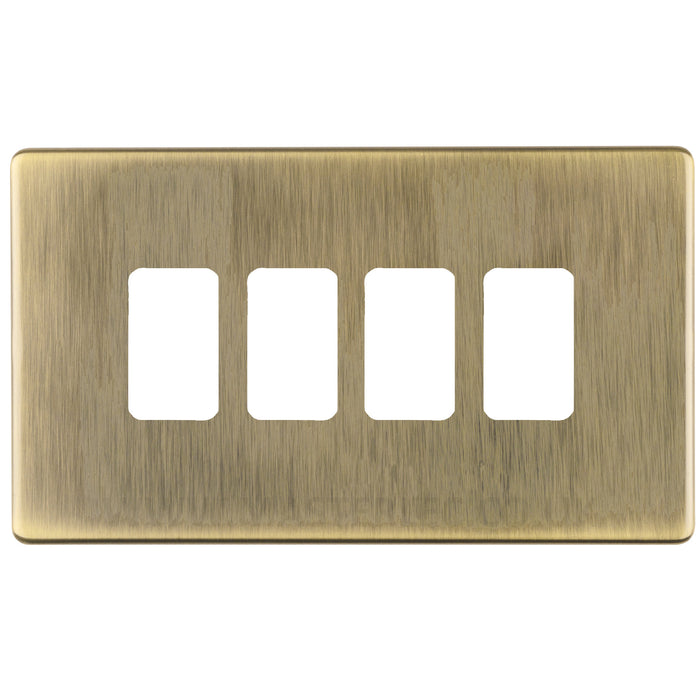

Front Plates/ cover plate & Grid yoke/ Grid Frames

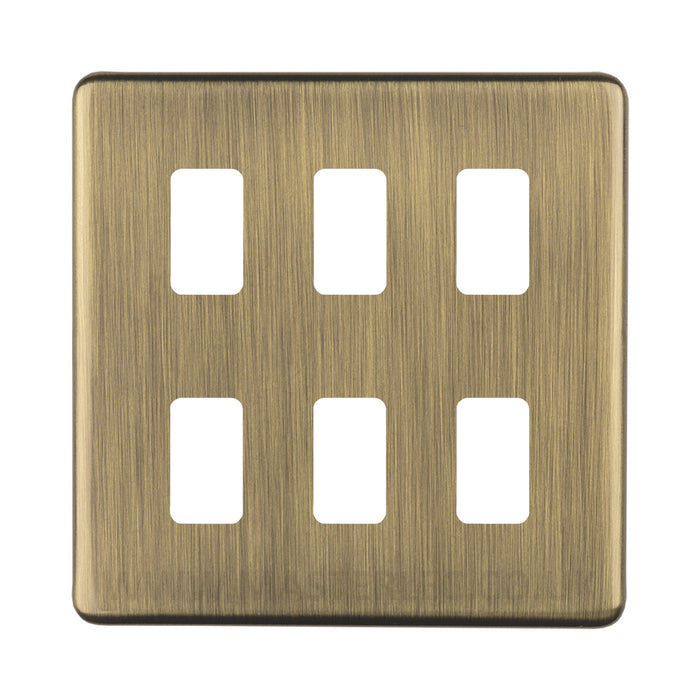

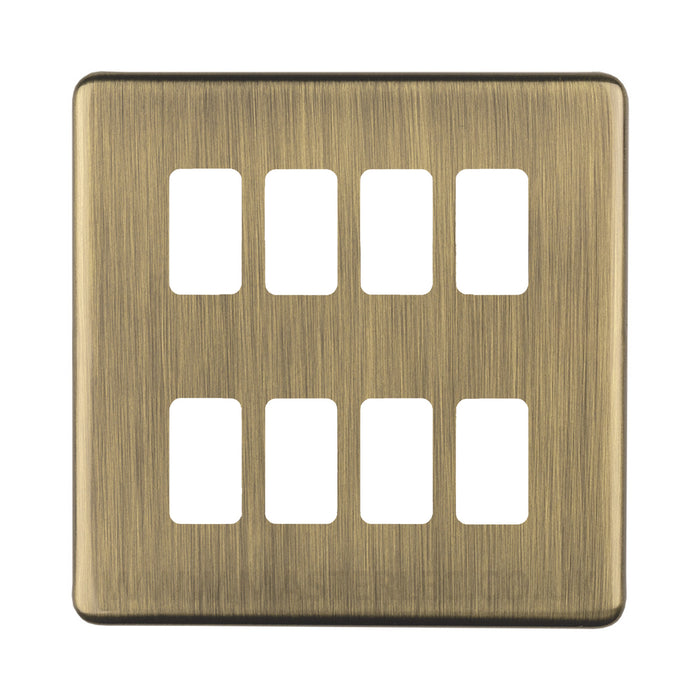

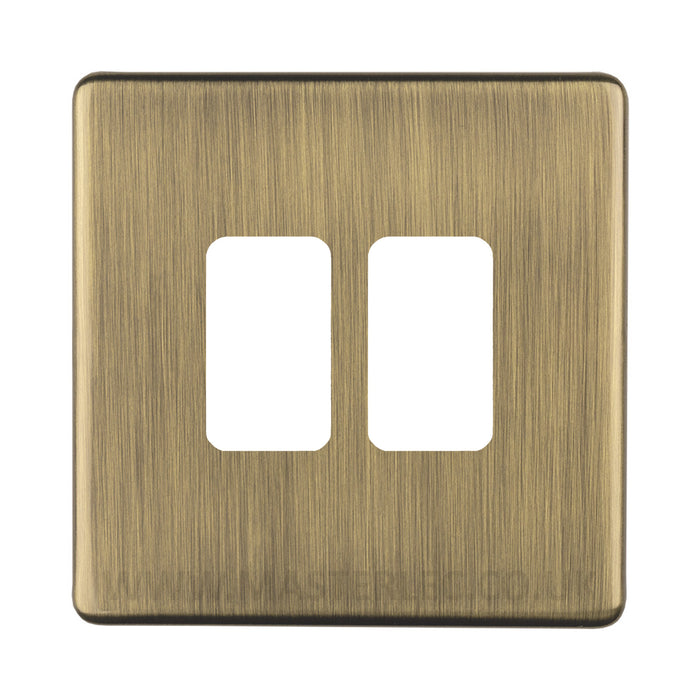

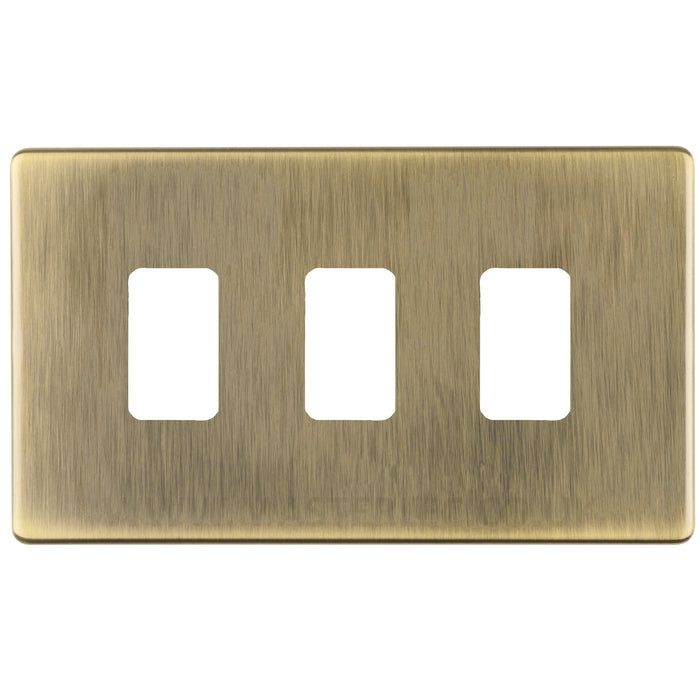

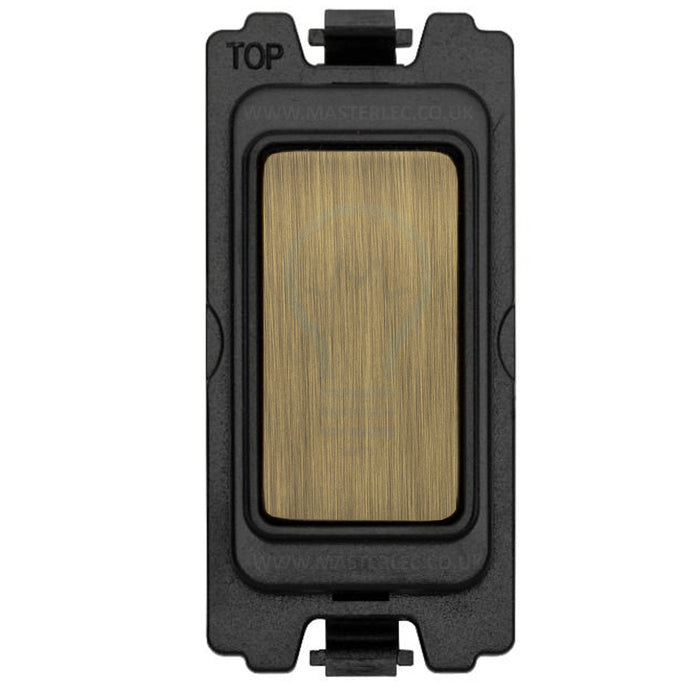

• A switch takes up one gang of a face plate. So, if you require 3 switches you will need to buy a 3 Gang face plate etc. We also supply blank switches for when you only require 5 switches on a 6 gang face plate or 7 switches from an 8 gang face plate etc.

Back Boxes

• For 1 and 2 gang grid switches you will need a standard single back box.
• For 3 and 4 gang grid switches you will need a standard double back box.

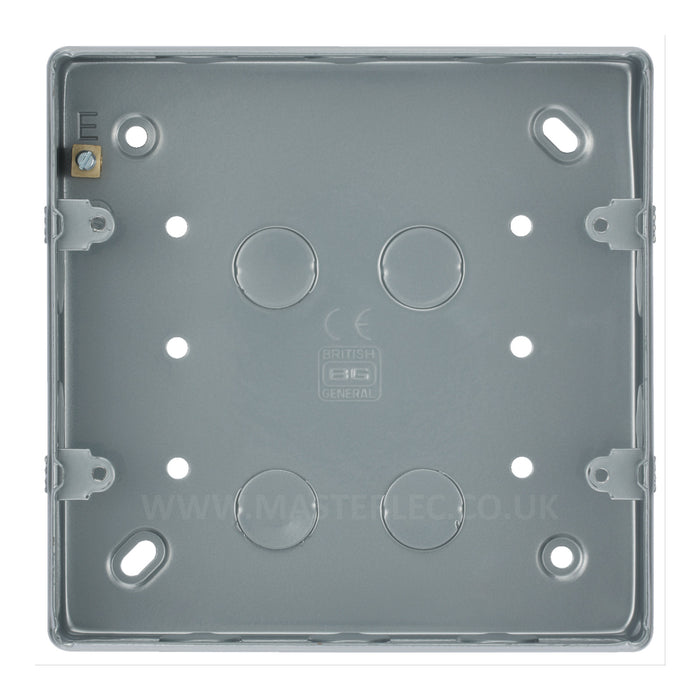

• For 6 and 8 gang you will need a special back box (please select MC503 from the drop-down menu) this can be surface or flush mounted.

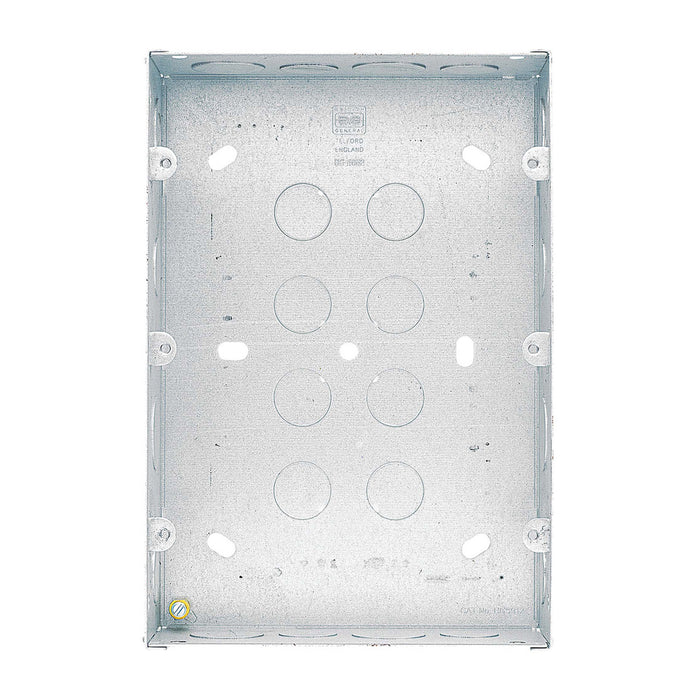

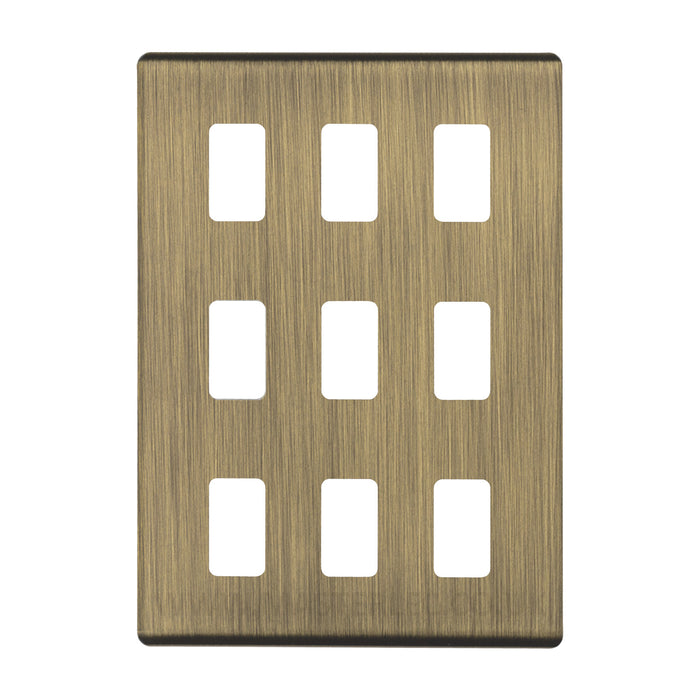

• For 9 and 12 gang you will need a special back box (please select HGS912 from the drop-down menu) this is a flush mounting back box

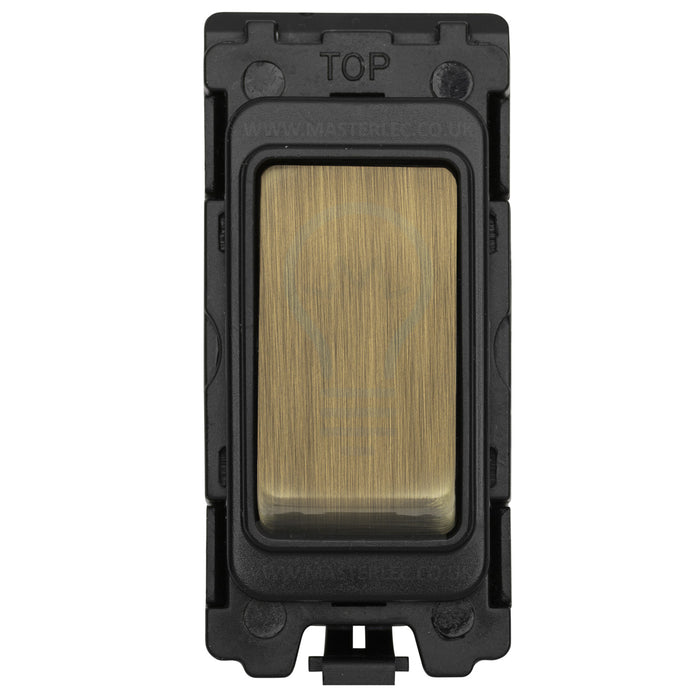

Switches

• The writing is embossed into the switch

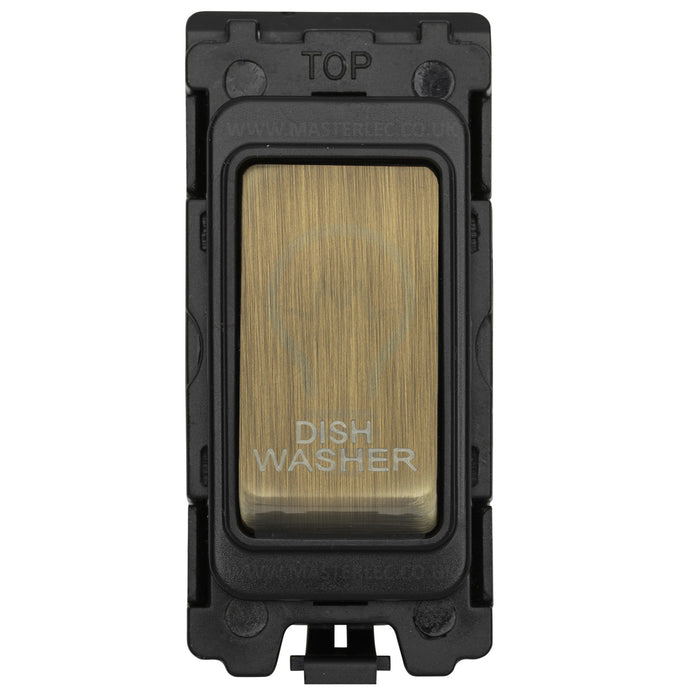

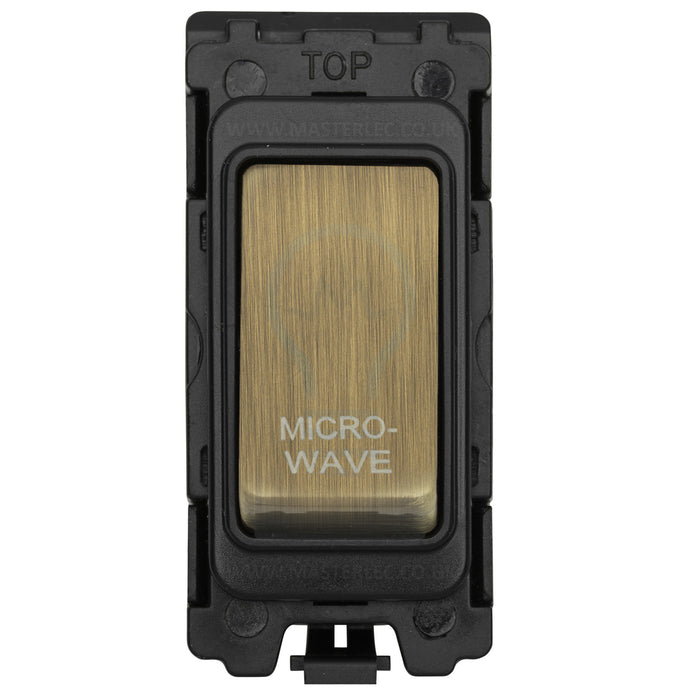

• We have a range of labelled switches that are embossed to match your appliances.

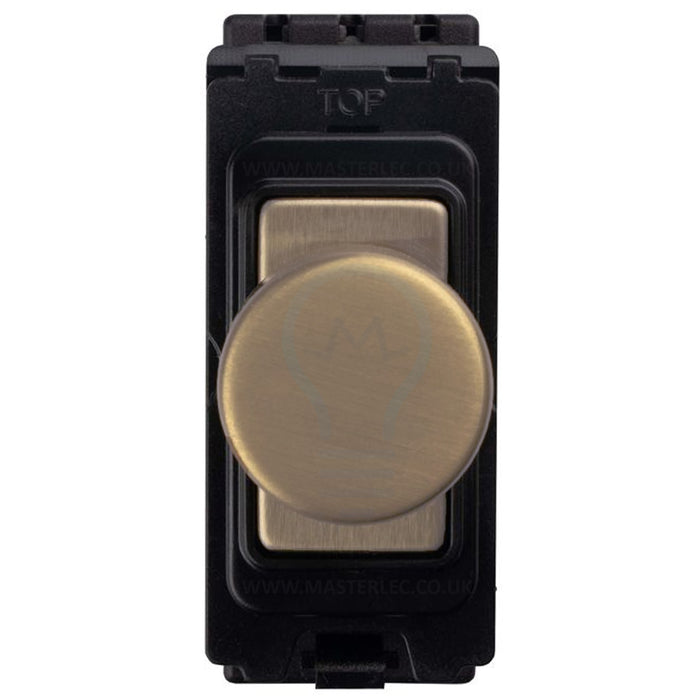

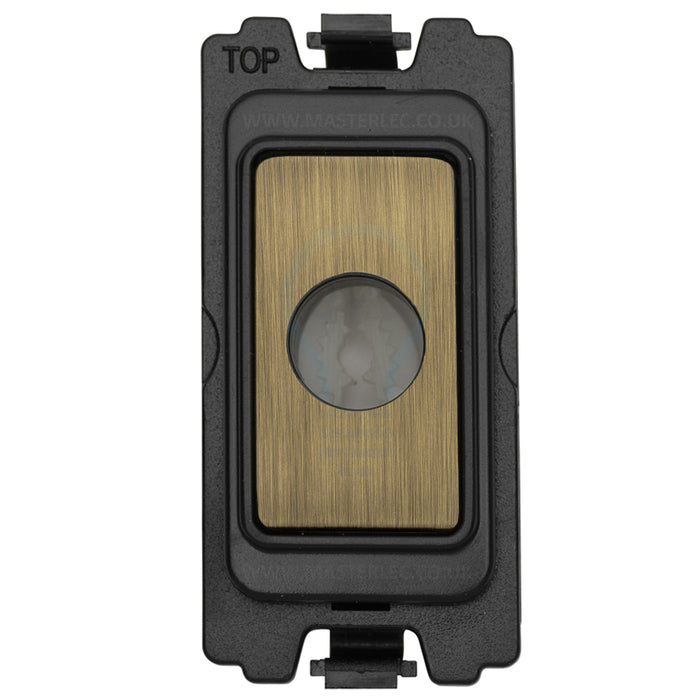

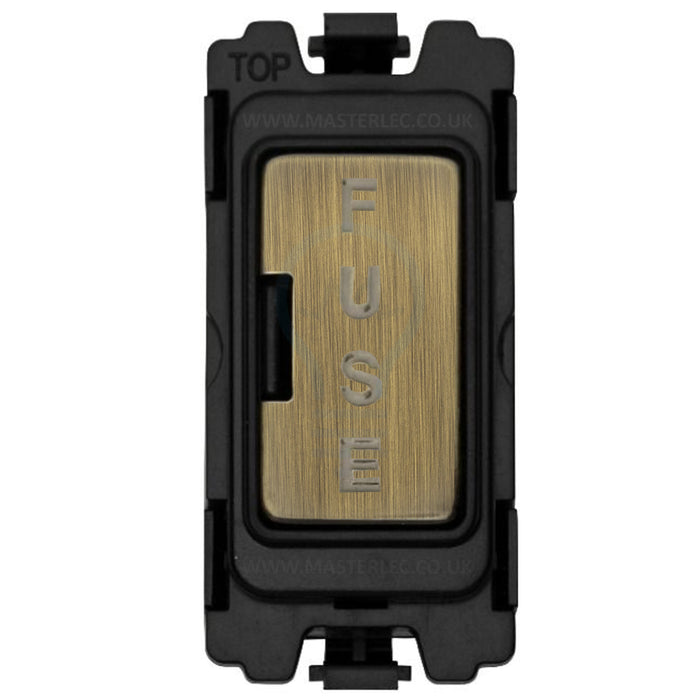

• Wide range of interchangeable modules including 20A Switches, Secret Key, Dimmer, Fuse holder & Flex Outlet.
