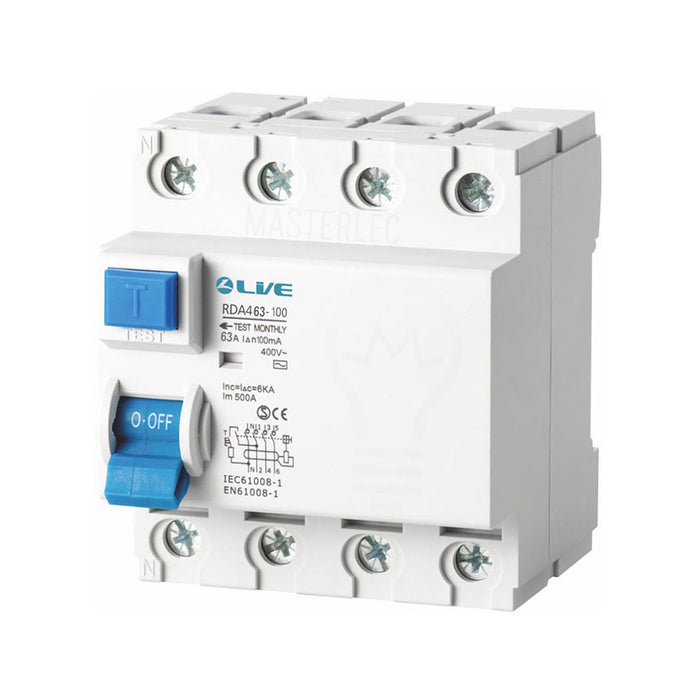

Live Electrical 4 Pole 63 Amp 100mA Type A High Immunity RCD RDA263-100
4 Pole 63A 100mA RCD- RDA263-100
Type A residual current device
Provides protection against earth fault/leakage current and provides point of isolation; High breaking current withstand capacity Flame resistant plastic parts endures abnormal heating and strong impact; Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity; independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical Specification
Pole No.: 4
Rated current(A): 63
Rated voltage: 230/400V AC
Rated frequency: 50/60Hz
Rated residual operating current I△(mA):100
Rated residual non-operating current: 0.5I△n
Rated conditional breaking current Inc: 6000A
Tripping duration Instantaneous tripping≤0.1s
Residual tripping current range:0.5I△n~l△n
Electro-mechanical endurance:4000 cycles
Connection capacity Rigid conductor up to 25mm 2
Connection terminal Screw terminal
Pillar terminal with clamp
Fastening torque 2.0 Nm
Installation: On symmetrical DIN rail 35mm
Panel mounting
Bidirectional
Type A
