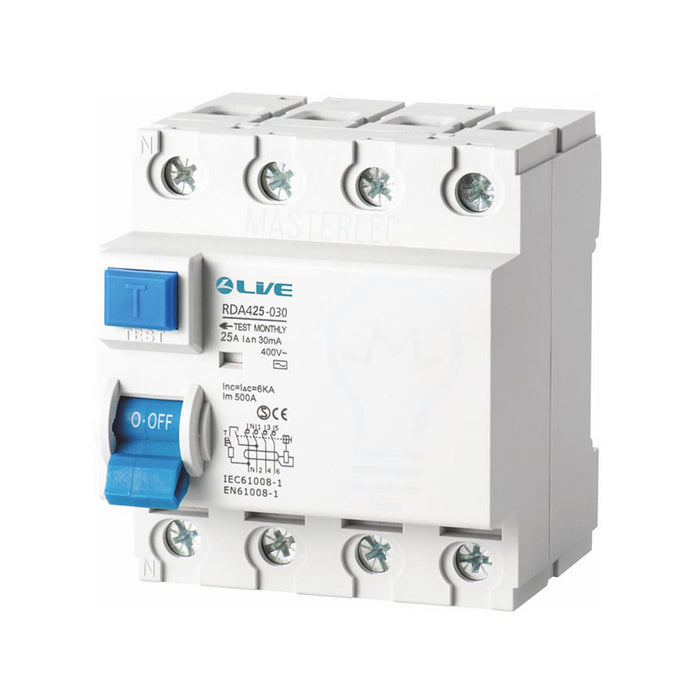

Live Electrical 4 Pole 25 Amp 30mA Type A High Immunity RCD RDA225-030

4 Pole 25A 30mA RCD- RDA225-030

Type A residual current device

Provides protection against earth fault/leakage current and provides point of isolation; High breaking current withstand capacity Flame resistant plastic parts endures abnormal heating and strong impact; Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity; independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Technical Specification

Pole No.: 4

Rated current(A): 25

Rated voltage: 230/400V AC

Rated frequency: 50/60Hz

Rated residual operating current I△(mA):30

Rated residual non-operating current: 0.5I△n

Rated conditional breaking current Inc: 6000A

Tripping duration Instantaneous tripping≤0.1s

Residual tripping current range:0.5I△n~l△n

Electro-mechanical endurance:4000 cycles

Connection capacity Rigid conductor up to 25mm 2

Connection terminal Screw terminal

Pillar terminal with clamp

Fastening torque 2.0 Nm

Installation: On symmetrical DIN rail 35mm

Panel mounting

Bidirectional

Type A
