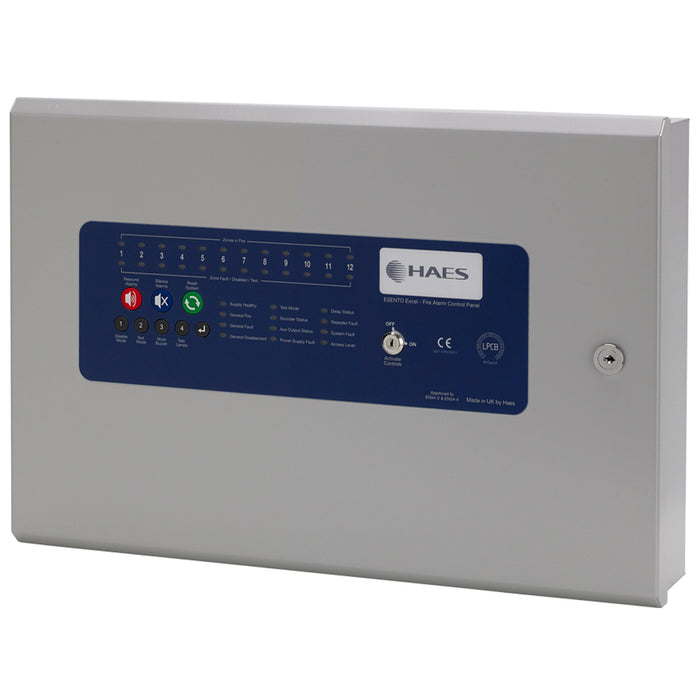

Haes Esento Excel 4 Zone Conventional Fire Alarm Control Panel X-LEN

4 zone Esento Excel fire alarm control panel, extendable to 12 zones. Excel panels provide the ultimate in flexibility, simplicity & reliability with a generous selection of programmable features, inputs and outputs. Fully networkable up to 8 control panels, 3 false alarm management modes, Twin Wire mode per zone and fully functional repeater panels.

• 4 zones
• Zonal Twin Wire selection by DIL switch
• Network up to 8 control panels
• Activate controls via key switch or code entry
• Integral detector removal monitoring
• 3 Amp switch mode power supply Nom 27V DC
• 2 monitored sounder outputs
• 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
• Class change I/P
• Alert I/P
• Fire & fault switched -ve outputs
• Program delays to outputs
• False alarm modes A, B & C
• Test mode, with or without sounders
• Disable zones, sounder O/Ps, aux O/Ps & delays
• Alarm load, 2.4A shared between all sounder outputs
• All sounder circuits are fused @ 500mA with resettable fuses

Dimensions:

Back box: 450mm W x 300mm H x 85mm D, Lid: 460mm W x 310mm H x 25mm D
